This guide covers what oil-flooded rotary screw compressors are, how they work, where they fit, and how to keep them running reliably. Whether you're evaluating a new purchase or managing an existing system in Northern Ohio, the information here will help you make better decisions.
Key Takeaways
- Oil serves three simultaneous functions in the compression chamber: sealing, cooling, and lubrication
- VSD models can reduce compressed air energy costs by up to one-third compared to fixed-speed units under variable demand
- Up to 90% of compression heat is recoverable for space heating or process water preheating - a significant efficiency gain
- ISO 8573-1 defines air purity classes - use it to specify the right filtration for your downstream equipment
- Synthetic lubricants extend oil change intervals to 8,000 hours - four times longer than petroleum-based oils at ~2,000 hours
What Is an Oil-Flooded Rotary Air Compressor?
An oil-flooded rotary screw compressor is a positive-displacement machine that injects lubricating oil directly into the compression chamber during the compression process. This distinguishes it from oil-free designs, where the rotors run dry, and from reciprocating compressors, which use pistons instead.
The Rotary Screw Mechanism
At the core is the airend - a precision-machined housing containing two intermeshing helical rotors (male and female). As the rotors turn in opposite directions, air is trapped between the rotor lobes and the housing; as the profiles mesh along the airend's length, that trapped volume shrinks and the air compresses.
What the Oil Actually Does
Oil injection isn't just lubrication. It performs three simultaneous functions:
- Sealing: fills the small clearances between rotors to prevent blow-by of compressed air
- Cooling: absorbs the heat generated during compression, keeping operating temperatures low
- Lubrication: reduces wear on rotor surfaces, bearings, and other moving parts
Oil Separation and Carryover
After compression, the oil-air mixture discharges into a separator vessel. Bulk oil removal happens first through gravity and centrifugal action, followed by a coalescing separator element that captures residual oil droplets. The recovered oil is then cooled and recirculated.
Oil carryover - the residual oil remaining in discharged air - is measured in parts per million by weight (PPMw). CAGI uses 2.0 PPMw as a reference example in its purity guidance. Actual carryover varies by compressor model, separator condition, oil type, and operating conditions.

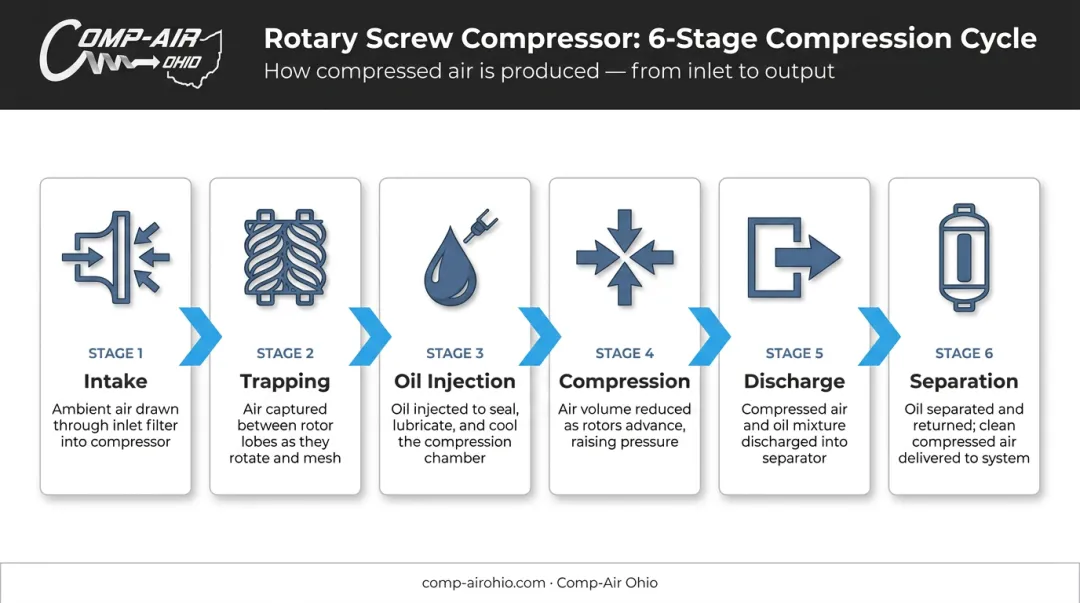

How an Oil-Flooded Rotary Screw Compressor Works
The compression cycle follows a consistent sequence:
- Intake - air enters through the inlet valve into the airend
- Trapping - air is captured between rotor lobes as the rotors mesh
- Oil injection - oil floods the compression chamber at this stage
- Compression - the rotor profile reduces trapped volume, compressing the air-oil mixture
- Discharge - the compressed mixture exits into the oil separator vessel
- Separation - oil is removed and recirculated; clean compressed air exits to the distribution system
Airend and Key Internal Components
Gardner Denver's GD RotorArmor coating creates a chemical and mechanical bond to rotor and housing surfaces, protecting the airend where efficiency is either preserved or lost. Two-part coating processes using a soft PTFE-graphite second layer can degrade over time, reducing performance by 10% or more. RotorArmor maintains its protective properties throughout the compressor's operational life - so efficiency doesn't erode as the machine ages.
Fixed Speed vs. Variable Speed Drive (VSD)
Fixed-speed compressors run the motor at constant RPM. They're most efficient at full load and work well as base-load machines in applications with consistently high, steady air demand.
VSD compressors adjust motor speed in real time to match actual air demand. When demand drops, the motor slows proportionally - eliminating the energy waste of running at full speed during light loads. According to CAGI, VSD technology can reduce compressed air costs by approximately one-third depending on demand profile. In a 200 HP example, CAGI analysis identified potential savings of $33,019/year and $165,095 over five years.
Gardner Denver's LRS Series VSD models (available from Comp-Air Ohio in 10–400 HP configurations) are engineered specifically for variable-demand industrial applications, delivering what Gardner Denver characterizes as the lowest kW/100 CFM in class.
Beyond drive type, how a compressor sheds heat is equally important to long-term performance and installation planning.
Cooling Methods
- Air-cooled - most common for smaller to mid-range units; simpler installation, no cooling water infrastructure required
- Water-cooled - suited for larger installations or facilities where ambient temperatures run high; requires cooling water supply and return piping
Gardner Denver's L Series, Electra-Saver, and LRS Series are all available in both configurations. Site conditions - ambient temperature, available water infrastructure, and space constraints - drive the selection.
Key Advantages of Oil-Flooded Rotary Air Compressors
Lower Cost and Continuous-Duty Capability
Oil-flooded rotary screw compressors carry a lower purchase price than oil-free equivalents of the same capacity. This cost advantage applies across a broad horsepower range - Comp-Air Ohio carries Gardner Denver oil-flooded models from 2 HP (Hydrovane V/VR Series) up to 500 HP (Electra-Saver/G2).
Because oil absorbs compression heat, these units run cooler and sustain continuous operation without thermal overloading. Reciprocating compressors require scheduled cooling breaks to avoid heat damage - rotary screw compressors handle that heat internally, so they don't.
Heat Recovery Opportunity
Oil-flooded compressors generate significant recoverable heat. The Compressed Air Challenge reports that up to 90% of compression heat can be recovered for plant use - space heating, process water preheating, or other thermal loads. For facilities running large compressors on extended hours, that recovered heat can offset thousands of dollars in annual utility costs.
Extended Service Life with Correct Lubrication
The oil film protects rotor surfaces and bearings from metal-to-metal contact. With the right lubricant and proper maintenance intervals, airend life is substantially extended.

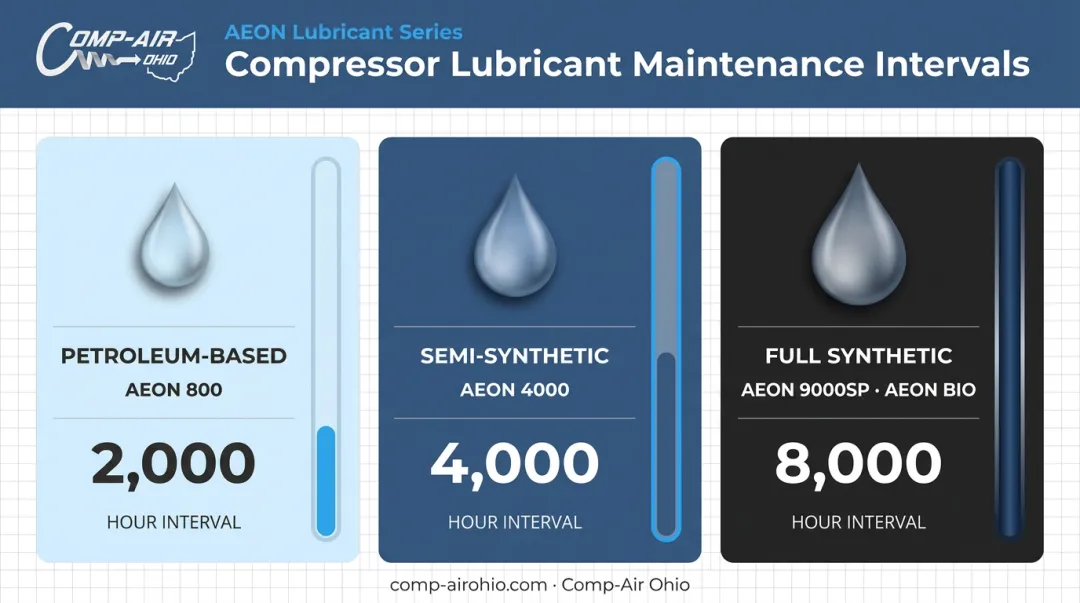

Gardner Denver AEON lubricant service intervals by type:
| Lubricant Type | Example Products | Interval |
|---|---|---|
| Petroleum-based | AEON 800 | 2,000 hours |
| Semi-synthetic | AEON 4000 | 4,000 hours |
| Full synthetic | AEON 9000SP, AEON BIO | 8,000 hours |
These intervals assume clean ambient conditions, proper filter and separator maintenance, and normal operating temperatures. Oil analysis should guide actual interval decisions. Comp-Air Ohio offers a free oil sampling program for customers using AEON lubricants.
Mechanical Simplicity
Oil-free rotary screw compressors require two compression stages with an intercooler to manage heat. Oil-flooded units achieve target pressures in a single stage, resulting in a more compact and mechanically simpler system - fewer components, less complexity, lower maintenance overhead.
Oil-Flooded vs. Oil-Free: Choosing the Right Compressor
The choice comes down to your application's air quality requirements and operating conditions:
Choose oil-flooded when:
- Residual oil in compressed air is acceptable or manageable through downstream filtration
- Lower capital cost is a priority
- Continuous heavy-duty operation is required
- Applications include general manufacturing, automotive, woodworking, packaging, or machine tools
Choose oil-free when:
- Zero oil contamination at the source is mandatory
- Applications include pharmaceutical manufacturing, food contact, electronics, semiconductor fabrication, or medical device production
ISO 8573-1 Air Quality Classes
ISO 8573-1 provides the standard framework for specifying downstream air purity. Oil content classes are measured in mg/m³:
| Class | Total Oil Limit |
|---|---|
| Class 0 | User/supplier specified (more stringent than Class 1) |
| Class 1 | ≤ 0.01 mg/m³ |
| Class 2 | ≤ 0.1 mg/m³ |
| Class 3 | ≤ 1 mg/m³ |
| Class 4 | ≤ 5 mg/m³ |
The Filtration Caveat
Installing coalescing filters downstream of an oil-flooded compressor can reduce oil carryover to very low levels. This is not the same as a certified oil-free system.
Per ISO 8573-1, Class 0 designation applies to air produced by an oil-free compressor - not oil-flooded air cleaned by downstream filtration. For applications where contamination risk is unacceptable, source-level oil-free compression is the correct choice.

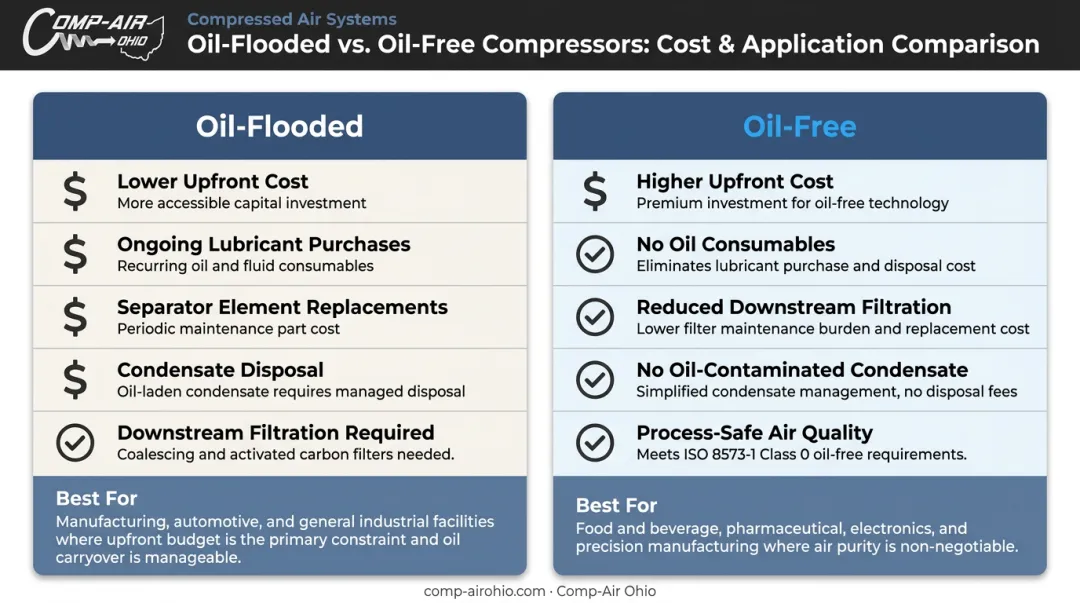

Total Cost of Ownership
TCO comparison involves more than purchase price:
- Oil-flooded: Lower upfront cost, ongoing lubricant purchases, separator element replacements, condensate disposal
- Oil-free: Higher upfront cost, eliminates oil-related consumables, reduces downstream filtration requirements
Neither type is universally cheaper over a machine's life. Run the numbers against your actual operating hours, energy costs, and air quality requirements - those three variables typically determine which option delivers lower TCO for your facility.
Essential Maintenance Practices for Oil-Flooded Compressors
Oil and Fluid Management
Oil sampling is one of the most effective - and most overlooked - maintenance practices. OEM guidance recommends analyzing lubricant for wear metals, additive content, acid level, and water content. Lubricant oxidation can produce acids, sludge, varnish, and antioxidant depletion, all of which accelerate component wear.
Key oil management rules:
- Use OEM-specified lubricant - incompatible fluids cause varnish buildup, reduced cooling, increased carryover, and can void warranty
- Follow manufacturer-recommended change intervals (or shorten them based on oil analysis results)
- Gardner Denver's Platinum 10-Year Extended Warranty requires on-schedule maintenance per the operations manual
For facilities in Northern Ohio, Comp-Air Ohio supplies genuine AEON lubricants and OEM parts for Gardner Denver equipment - with 24/7 emergency service available to contract customers.
Separator Element, Air Filter, and Condensate System
A clogged separator element raises differential pressure, reduces efficiency, and causes oil carryover spikes. Inlet filters protect the airend from particulate contamination, and condensate drain maintenance keeps water out of downstream equipment and processes.

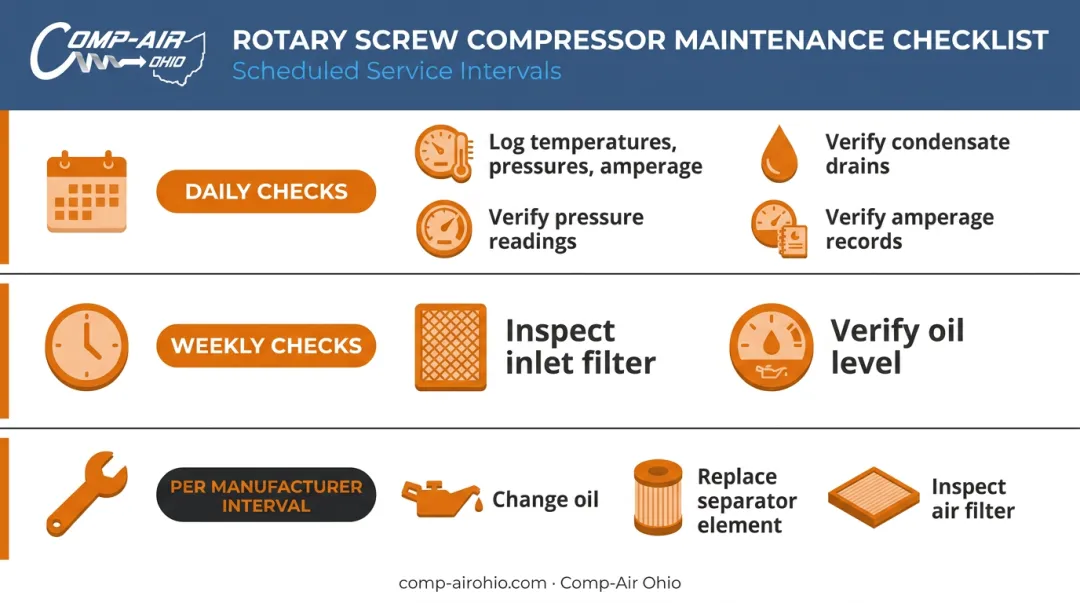

Maintain a regular service checklist:
- Daily checks - log operating temperatures, pressures, and amperage; confirm condensate drains are cycling correctly
- Weekly checks - inspect inlet filter for restriction; verify oil level is within the normal operating range
- Per manufacturer interval - change oil, replace the separator element, and inspect or replace the air filter
Leak Audits and Proactive Monitoring
The U.S. Department of Energy estimates that air leaks waste 20–30% of compressor output in typical industrial systems. The target is reducing leaks to under 5–10% of total system flow. The Compressed Air Challenge recommends conducting leak surveys quarterly.
Gardner Denver's Governor touchscreen controller and iConn remote monitoring system support proactive maintenance by logging run hours, volume flow, and system diagnostics - allowing operators to catch problems before they cause downtime. Comp-Air Ohio also provides compressed air audits that identify leak sources, measure system inefficiencies, and recommend targeted improvements.
How Comp-Air Ohio Delivers for Your Plant
Comp-Air Ohio is the Gardner Denver air compressor dealer for Northeast Ohio, serving manufacturing plants, automotive shops, processing facilities, and commercial businesses from 9841 York-Theta Drive in North Royalton since 1977. Your Cleveland, Akron, and Northern Ohio facility gets local sales, service, repair, maintenance, parts, compressed air audits, and electric rentals up to 300 HP, plus all-makes repair when uptime matters.
Explore related resources on our compressors, parts, dryers, aluminum piping, lubricants, compressor controls, nitrogen generators, and used equipment pages.
Ready for next steps? Request a quote, call Cleveland at (440) 237-6700, Akron at (330) 928-3092, or toll-free at (800) 247-7978.
Frequently Asked Questions
What is an oil-flooded rotary air compressor?
An oil-flooded rotary air compressor is a rotary screw compressor that injects oil directly into the compression chamber to seal rotor clearances, remove compression heat, and lubricate moving parts. The oil is then separated from the compressed air before it enters the distribution system and recirculated.
Which is better: oil-free or oil-flooded rotary air compressors?
Neither is universally better - the application determines the choice. Oil-flooded units are preferred for most industrial applications due to lower cost, continuous-duty capability, and long service life. Oil-free is required where zero oil contamination is mandatory, such as pharmaceuticals, food contact, and medical applications.
What causes liquid flooding in oil-flooded rotary air compressors?
The most common causes are short-cycling (the compressor never reaches normal operating temperature, allowing condensation to accumulate), a failed thermostatic valve that prevents oil from warming properly, or water ingestion through a compromised inlet filter. All allow liquid to accumulate in the sump and airend.
What happens if the wrong oil is used in an oil-flooded rotary air compressor?
Incompatible lubricants cause varnish buildup, reduced cooling, higher operating temperatures, increased oil carryover, and premature bearing failure. Using non-OEM lubricants can also void the Gardner Denver warranty, so always use the manufacturer-specified oil.
How often should oil be changed in an oil-flooded rotary air compressor?
Intervals range from 2,000 hours for petroleum-based lubricants up to 8,000 hours for full synthetics like Gardner Denver AEON 9000SP. Regardless of lubricant type, oil analysis results should guide your actual change intervals.
What is oil carryover and how can it be minimized?
Oil carryover is the residual oil remaining in compressed air after separation, measured in PPMw. Reduce carryover by keeping the separator element in good condition, maintaining correct oil fill level, using OEM-specified oil, avoiding frequent short-cycling, and installing coalescing filters downstream where tighter air purity is required.
