Multi-Stage Air Drying Systems for Compressed Air

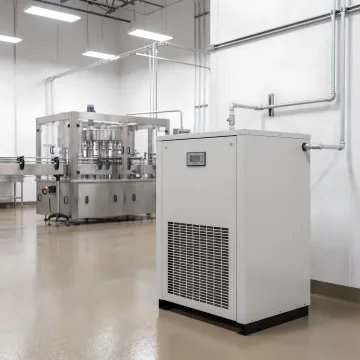

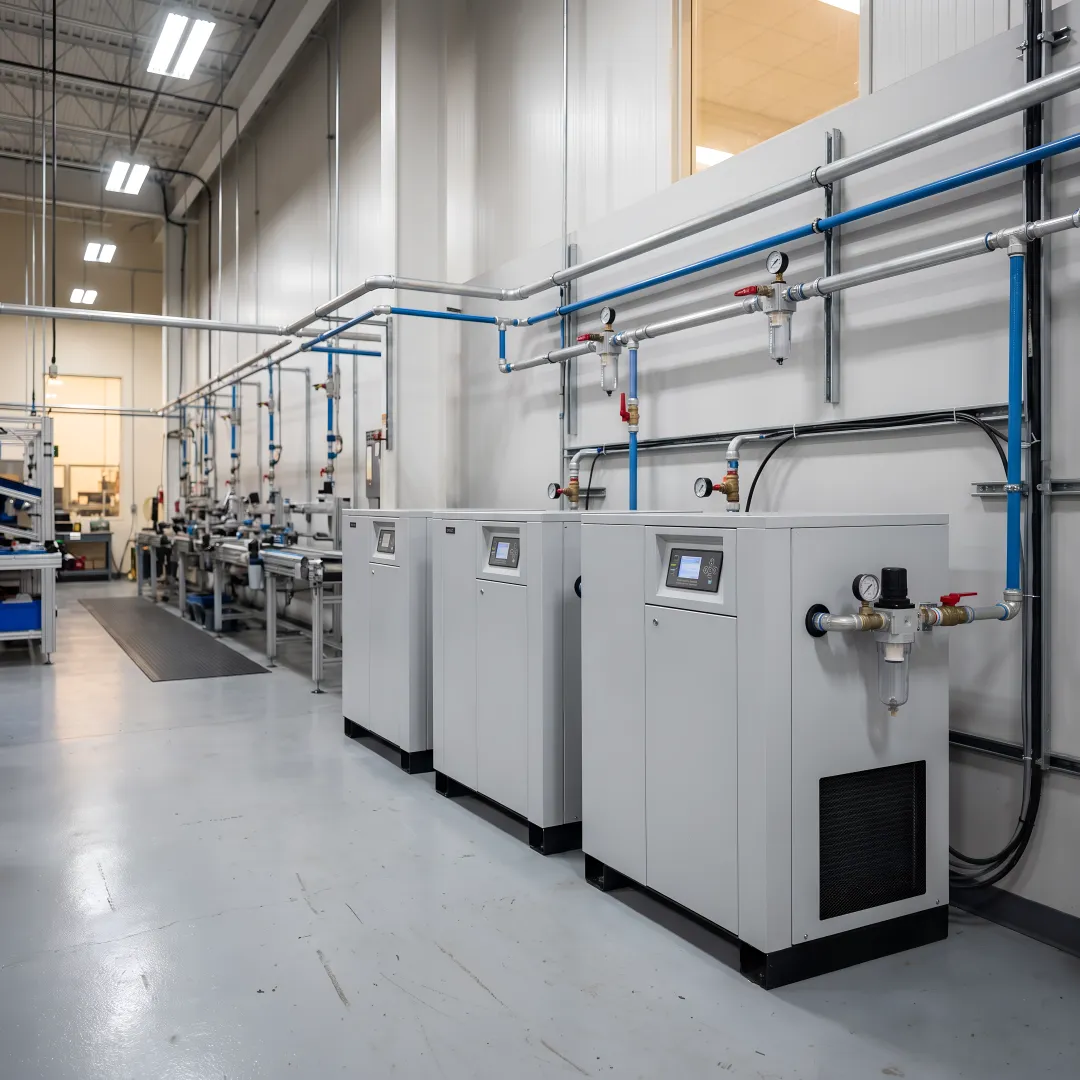

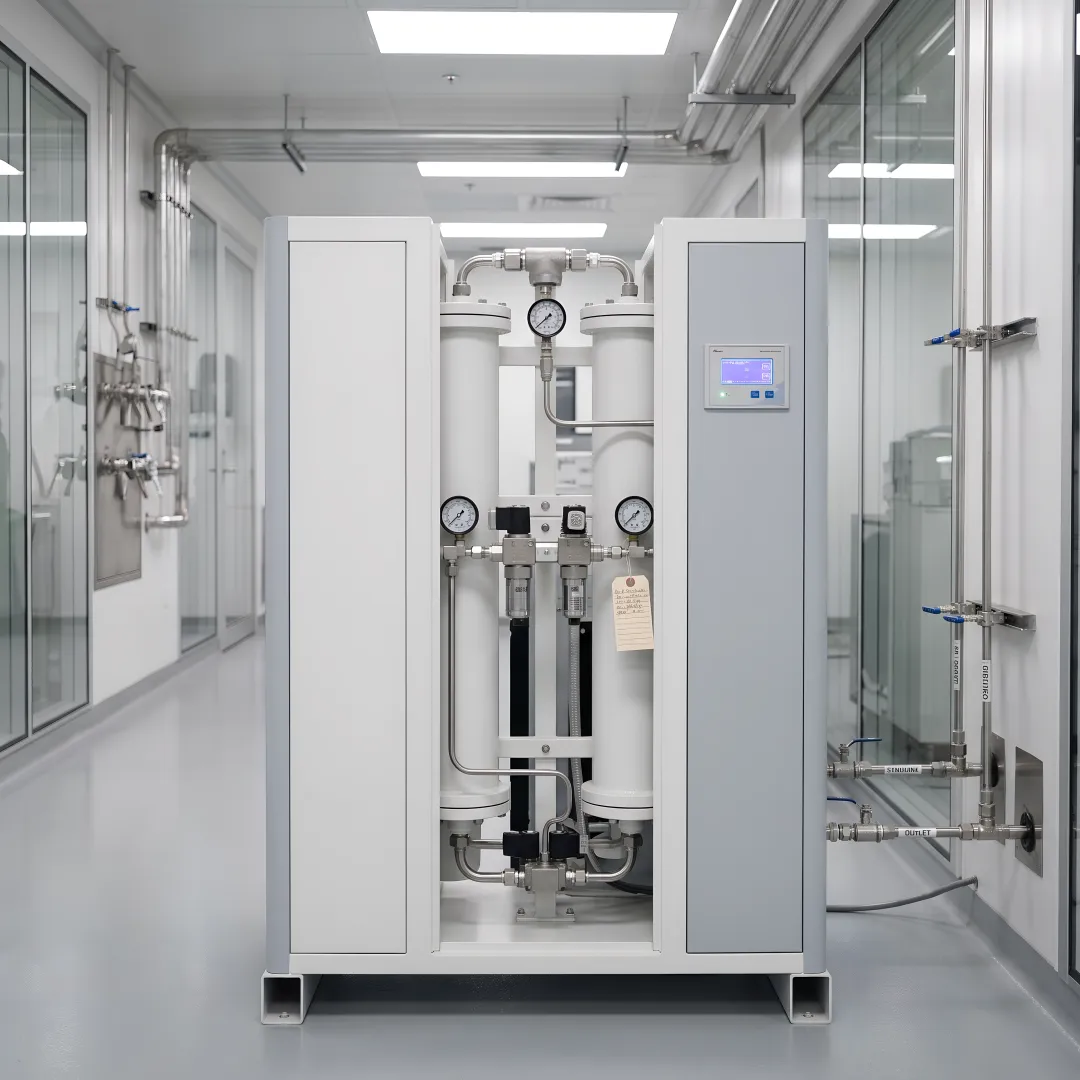

Most manufacturing and pneumatic tool applications are well served by a 38°F pressure dew point from a refrigerated dryer. Processes involving outdoor pipelines in cold climates, pharmaceutical production, precision instrumentation, or electronics manufacturing typically require desiccant dryers achieving -40°F, -80°F, or -100°F pressure dew points.

Match the dryer's rated SCFM to your compressor's maximum output at your operating pressure. Derate capacity for elevated inlet temperatures, lower pressures, or lower dew point requirements per CAGI correction factors. For variable demand applications, consider cycling refrigerated models or demand-controlled desiccant dryers to optimize energy consumption.

True-cycling refrigerated dryers like the ZEKS HeatSink and Gardner Denver XGCY Series can deliver energy savings as high as 80% compared to non-cycling dryers. Savings are achieved through thermal mass storage technology that allows the refrigeration compressor to cycle off during low-demand periods while maintaining the required 38°F pressure dew point.

Yes. ZEKS High Pressure Compressed Air Dryers are specifically engineered for systems operating above 200 psig. The SCFX Series handles up to 680 psig, while the SS Series accommodates pressures up to 6,000 psig using an all-stainless steel air circuit, making them suitable for specialized high-pressure equipment and gas cooling applications.

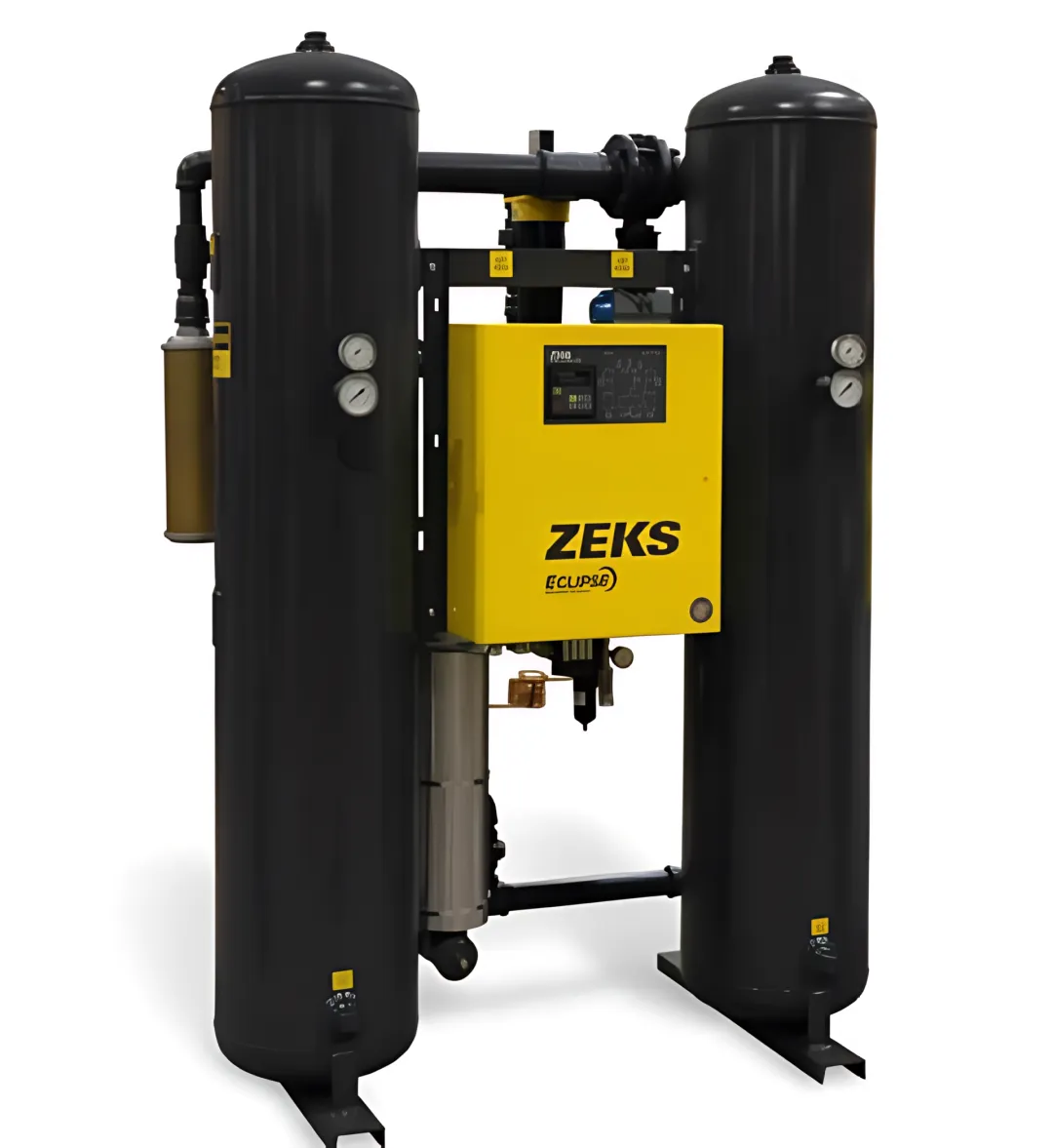

Desiccant dryers require periodic inspection and replacement of the desiccant media, typically activated alumina. Switching valves on ZEKS Eclipse models have 3–5 year service intervals depending on valve type. A coalescing pre-filter with auto drain must be installed and maintained upstream; operating without it voids the warranty. Moisture Load Control options reduce regeneration frequency and operating costs.

Yes. Products in this lineup carry multiple certifications including ASME Section VIII Division 1 for pressure vessels, ETL/UL/ULC electrical panel certifications, and ISO 8573-1 air quality compliance. ZEKS HeatSink models are independently verified through the CAGI Performance Verification Program. Performance data is presented per CAGI Standard ADF 200 for desiccant models.
