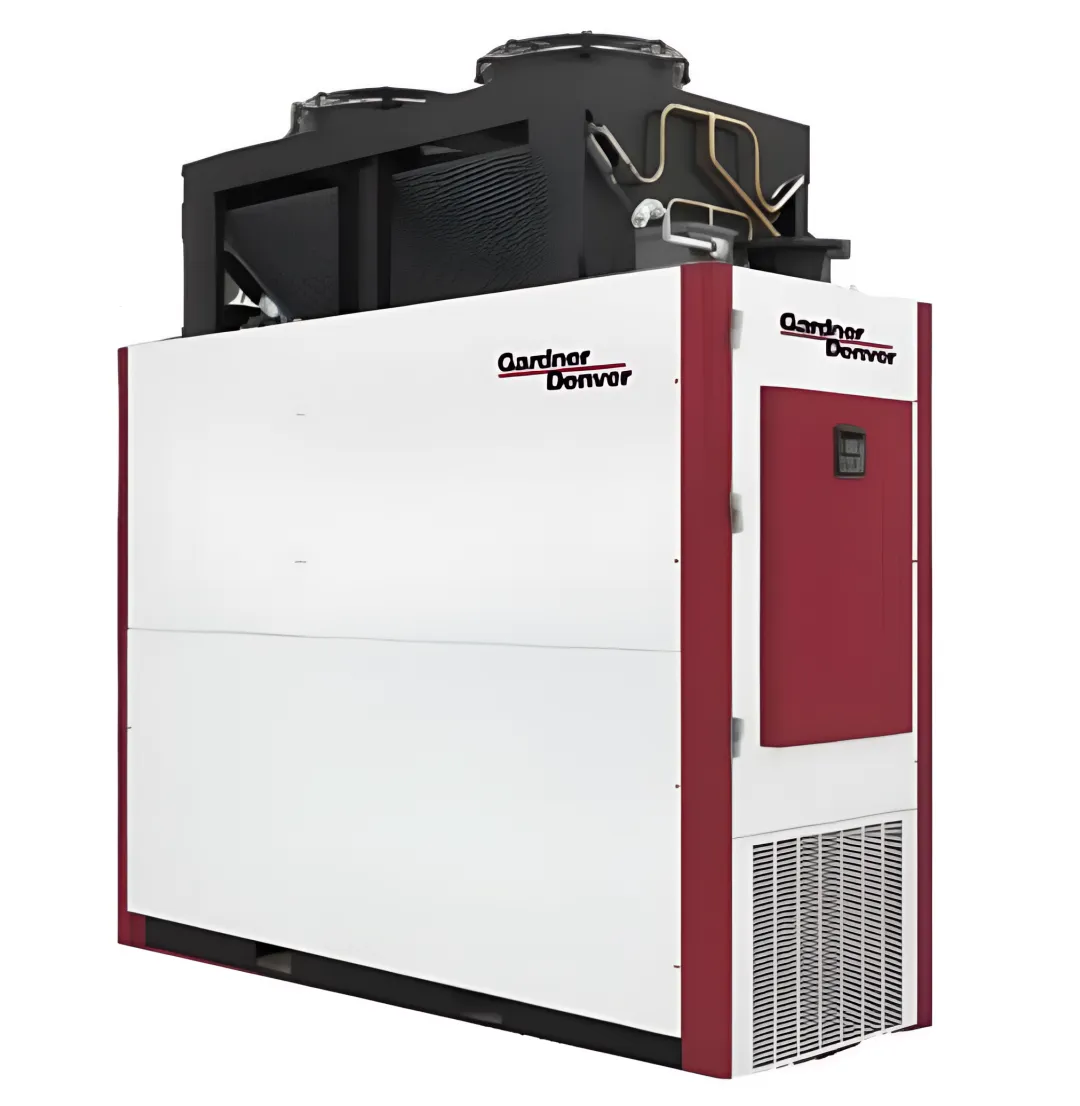

Air Dryer Filters for Gardner Denver Systems

The FIL/GIL Series filters cover flow capacities from 20 to 21,250 CFM, making them suitable for small workshop systems through large industrial installations. Mist eliminator systems are rated from 125 to 10,000 CFM, and activated carbon tower units handle 80 to 5,500 CFM.

Yes. Gardner Denver filters are designed to achieve ISO 8573-1 Air Quality Class 1 for solids and remaining oil content, with high-efficiency coalescing filters removing 99.999%+ of solids ≥0.01 micron and maintaining oil content below 0.01 mg/m³ in the compressed air stream.

Yes. Gardner Denver offers dedicated high pressure and high temperature filter variants within the FIL/GIL Series to accommodate demanding industrial applications where standard filter specifications would be insufficient. Contact an authorized distributor to identify the correct configuration for your operating conditions.

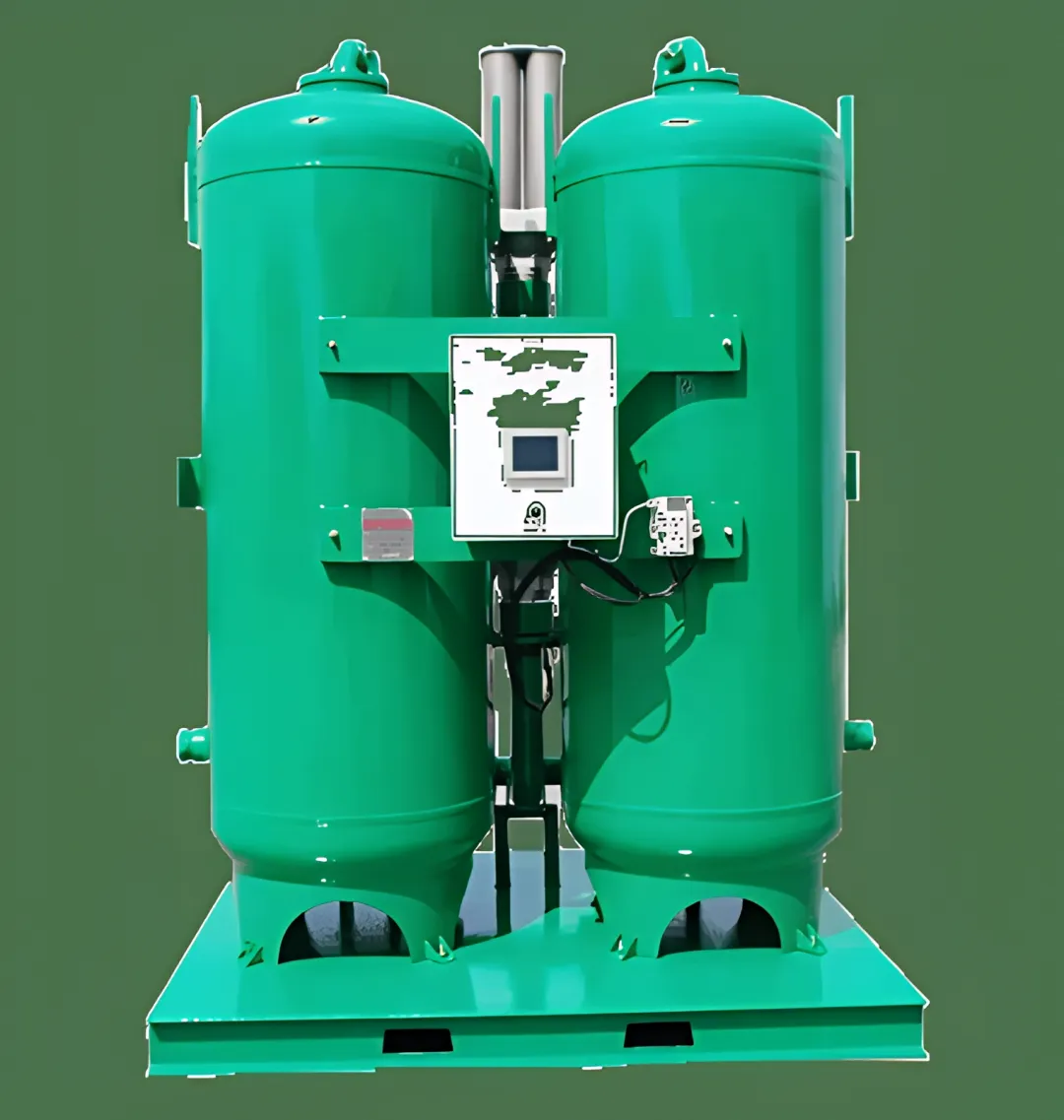

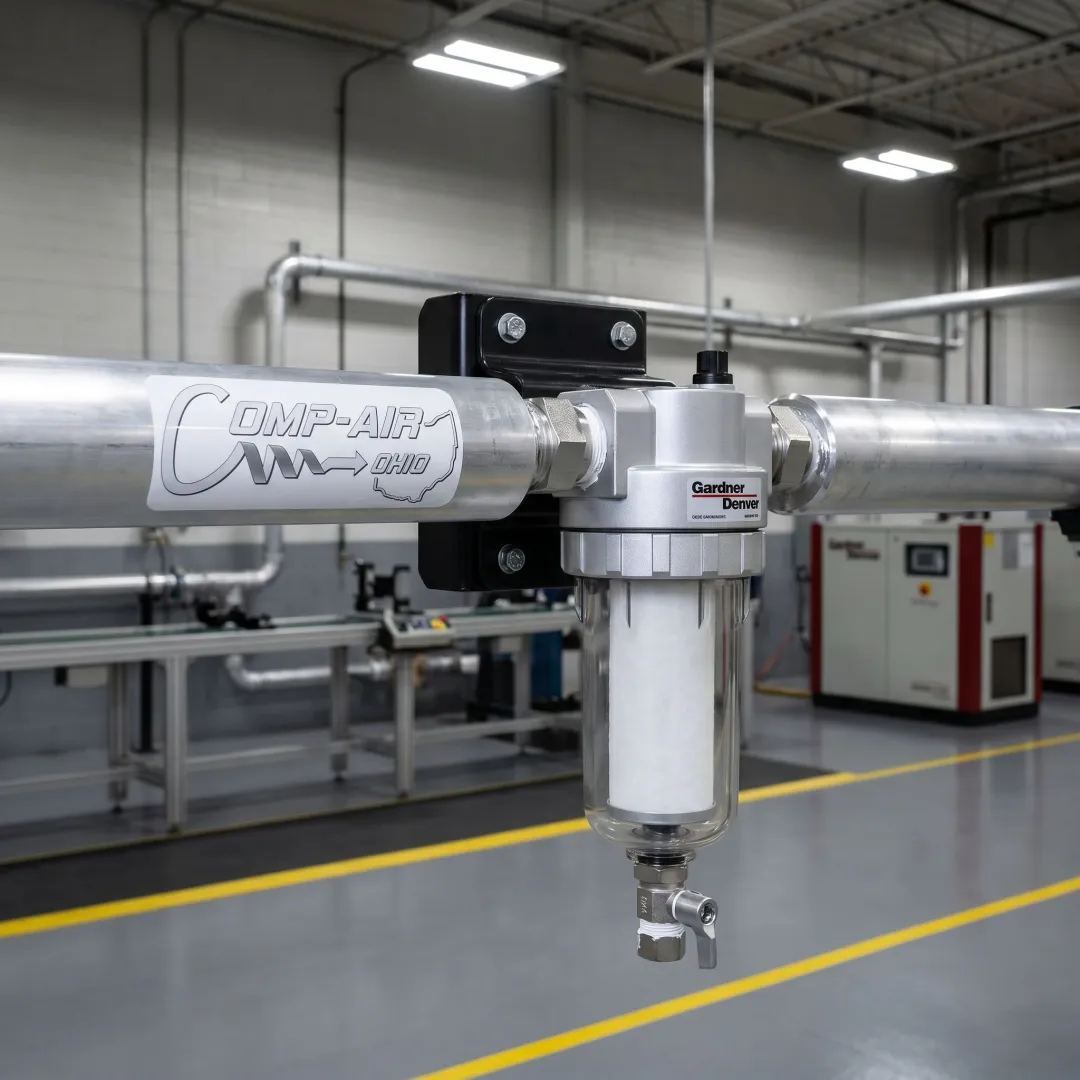

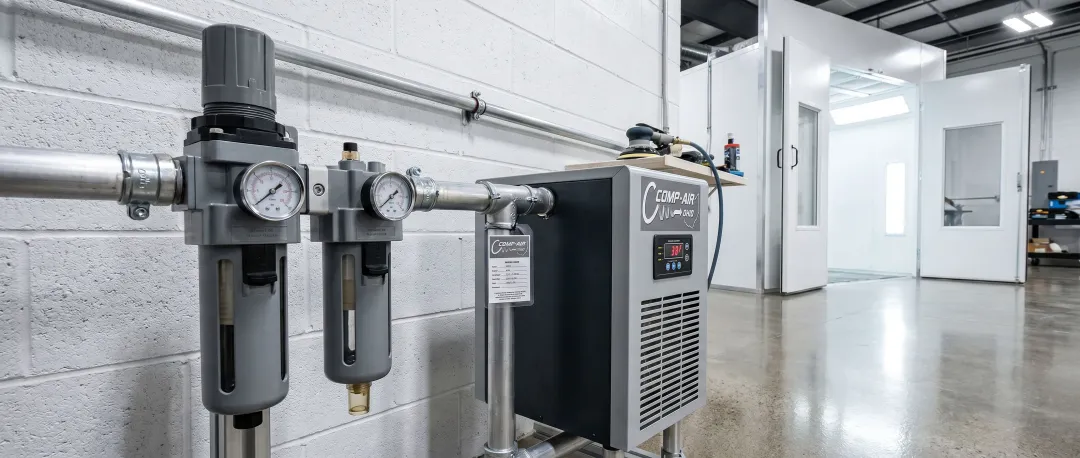

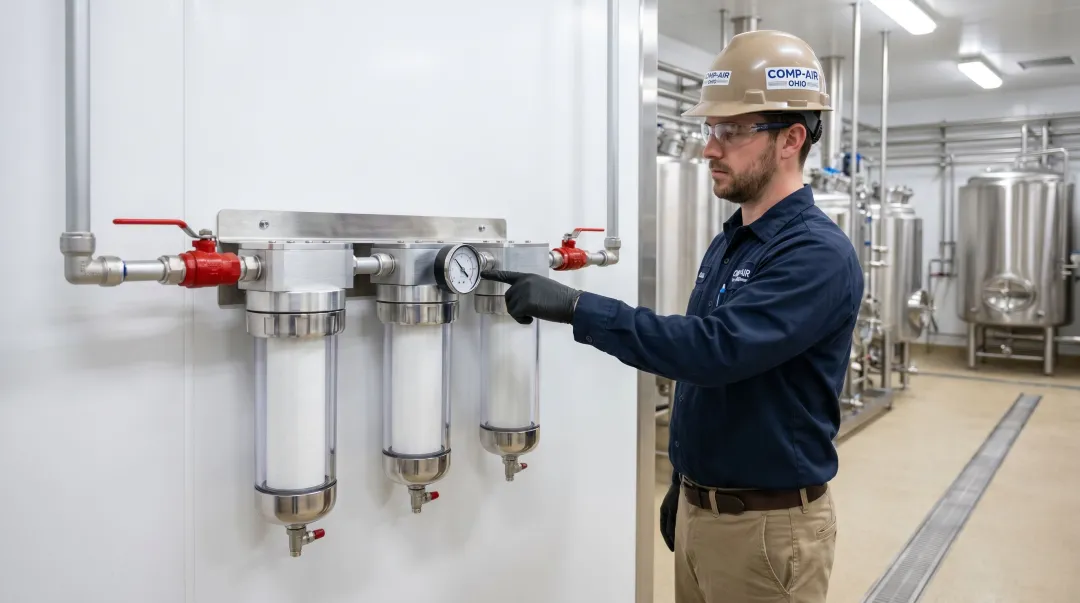

These filters serve industrial manufacturing, food and beverage, pharmaceutical and biotechnology, semiconductor, medical and dental, automotive, marine, and construction industries. Each sector benefits from specific filter grades that meet the air purity requirements of those regulated or contamination-sensitive environments.

Replacement intervals for air/oil separators are specified in the Gardner Denver compressor service and operating manual. Frequency depends on ambient conditions, compressor operating temperatures, and usage patterns. Following OEM-recommended schedules minimizes oil carryover, protects downstream equipment, and ensures optimal compressor service life.

Yes. While the FIL/GIL Series is designed primarily for rotary screw compressors, Hydrovane-specific filters and air/lubricant separators are engineered for rotary vane models such as the HV37. Genuine Hydrovane replacement parts are available through the authorized Comp-Air Ohio distributor network.

Gardner Denver air dryer filters and air/oil separators are stocked as filtration supplies, with aftermarket parts and AEON and Summit Industrial lubricants available for the same service intervals.

Gardner Denver air dryer filters and air/oil separators support Gardner Denver and Zeks dryers, and are stocked as filtration supplies alongside aftermarket parts and AEON and Summit Industrial lubricants.
